Howo TX 460HP dry powder pumper fire apparatus

Howo TX 460HP dry powder pumper fire apparatus
Howo TX 460HP dry powder fire truck
Howo TX 6000L dry powder fire truck
Howo TX 460HP dry powder fire fighting truck
Howo TX 460HP fire pump truck
Howo TX 460HP fire pump truck with dry powder
Howo TX dry powder fire truck
Howo TX dry powder fire fighting truck
Howo TX 6x4 dry powder fire truck
Howo TX 3000L dry powder fire truck
Howo TX 460HP dry powder fire truck
Howo TX double cabin dry powder fire truck

Howo TX 460HP dry powder pumper fire apparatus

The Howo TX 460HP dry powder pumper fire apparatus is a multi-functional emergency rescue equipment built by CS Trucks Group based on the Sinotruk Howo TX dual chassis. It integrates powerful performance, efficient fire extinguishing system and reliable safety performance, and is designed to deal with various complex fire scenarios. It can be widely used for fire fighting and emergency rescue in factories, warehouses, petrochemical plants, power facilities and other places.

  • Uwezo wa kufanya kazi :

    6000L

  • Aina ya kibanda :

    Howo TX double cabin

  • Mfumo wa kuendesha gari :

    6x4

  • Msingi wa magurudumu (mm) :

    4600+1350

  • Injini maalum :

    340 Hp / WP10.340E22

  • Sanduku la gia :

    HW19710,10 forwards & 2 reverses

  • Ekseli ya mbele (Kg) :

    7500

  • Ekseli ya nyuma (Kg) :

    13000*2
Uliza Sasa
KATIKADI ZA BIDHAA
Bidhaa Mpya

The fire fighting truck is based on the Howo TX reinforced chassis and equipped with a mature Weichai WP10.340E32 engine. It features a 6x4 drive system and a 10-speed transmission, balancing power output and driving stability. It can adapt to various complex road conditions, including rough, slippery, and unpaved surfaces, with a maximum speed of 95 km/h. It can quickly respond to emergency rescue commands, buying valuable time for fire fighting.



Regarding the fire extinguishing system, the truck achieves coordinated operation of dry powder and water systems. It is equipped with a 3000L carbon steel dry powder storage tank, nine 80L high-pressure nitrogen cylinders, and a 3000L carbon steel water tank. Combined with a high-efficiency fire pump and a long-range fire monitor, it can flexibly respond to different types of fires. The vehicle is also equipped with a full set of standard rescue equipment and offers various optional configurations to meet multiple needs, including fire extinguishing, rescue, and cooling.

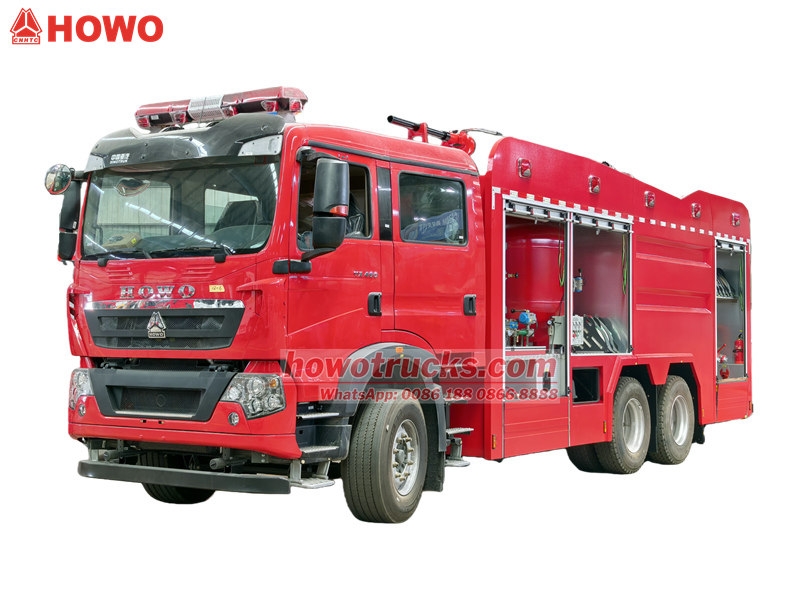

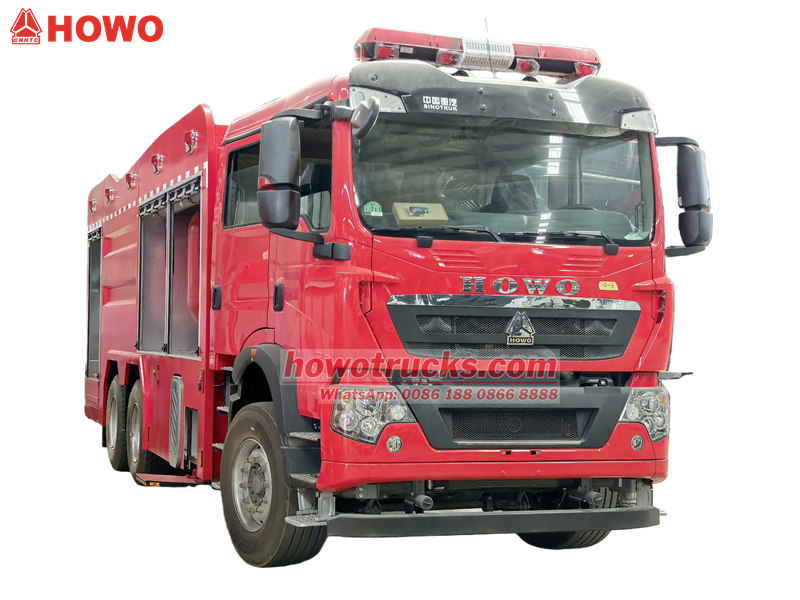

Howo TX fire fighting truck



*Howo TX heavy fire fighting truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



✦Ⅰ.Product Defination and Introduction «««

Manufacturer: CS Trucks Group

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 6X4,6x6 model

                              WP model with 340HP and Euro 2,3



2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose



3. Tanker body: Customized for Water + Foam + Dry Powder fire agent


4. Fire Pump: CB10/80-XZ centrifugal fire pump, flow rate 80L/s, working distance over 85m
                        Optional CB10/60, CB10/140 also available Darley fire pump


5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue



✦Ⅱ.Product Parameter For Howo TX Fire Fighting Truck «««



Howo TX fire fighting truck

Best Choice,Howo Fire Trucks

⇓ ⇓ ⇓




Howo 6x4 Heavy Dry Powder Fire Truck

General

Vehicle Brand

CS Trucks Group

Chassis Brand

Howo

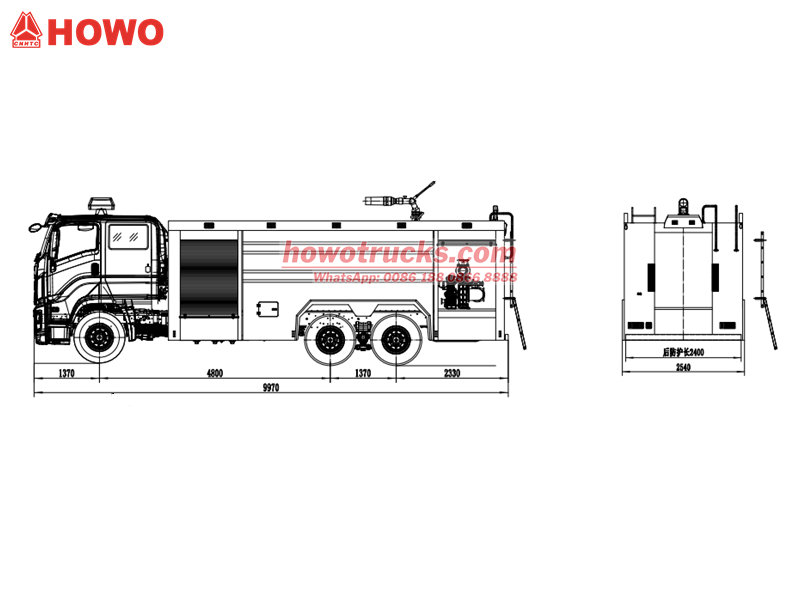

Overall Dimension

10300*2670*3550mm

GWW/ Kerb Weight

25,000kg/11,820kg

Cab

Cab Capacity

2+4 persons allowed

Air Conditioner

 air conditioner

Engine

Fuel Type

Diesel

Engine Brand

Weichai engine ,WP10.340E32

Power

340HP (257kw)

Displacement

9.839L

Emission Standard

Euro 3

Chassis

DriveType

6X4,left hand drive

Transmission

HW 10 speed forward, 2 reverse

Wheelbase/No.of axle

4350+1375 mm

Tyre Specification

12.00R22.5

Tyre Number

10 tyres and 1 spare tyre

Max Speed

95km/h

Paint

Metallic paint























Superstructure

Dry Powder
Tank Capacity

3000L

1 pcs

TankMaterial

Carbon steel

Nitrogen Gas Bottle

Material

37Mn

Capacity

 80 Litres

Quantity

9

Design pressure

15MPa

Fire Pump

Drive mode

 PTO

Pressure range

1.6-2.5 MPa

Flow rate

80-120 kg/s

Fire Cannon

Flow speed

60-100 kg/s

Range

40-60 m

Water Tank Capacity

3,000 Litres

Tank Material

carbon steel

Fire Pump

Brand

China TOP brand

Drive mode

 PTO

Priming Manner

Automatic

Pressure range

1.6-2.5 MPa

Flow rate

45L / s

Suction Height

9m

Fire Cannon

Flow speed

45L /s

Range

65 m

Superstructure Electric Appliance

Warning Light and Siren

Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.

Strobe Light

Mounted on the both sides of the compartment

External Lighting

LED lights are mounted on the both sides of the compartment

Roof Lighting

LED lights are mounted on the inside of the roof

Side Indicator Light

Inline yellow warning light is mounted on the side of the compartment and pedals

All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...

Optional

** Back alarm and Camera can be equipped

** Standard carbon steel, stainless steel optional

** USA or Germany fire pump can be optional



Howo fire fighting truck

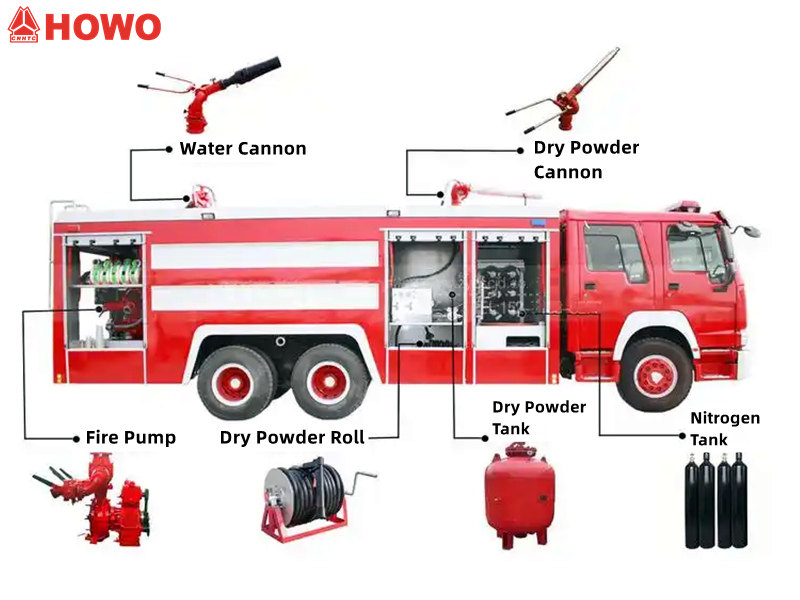

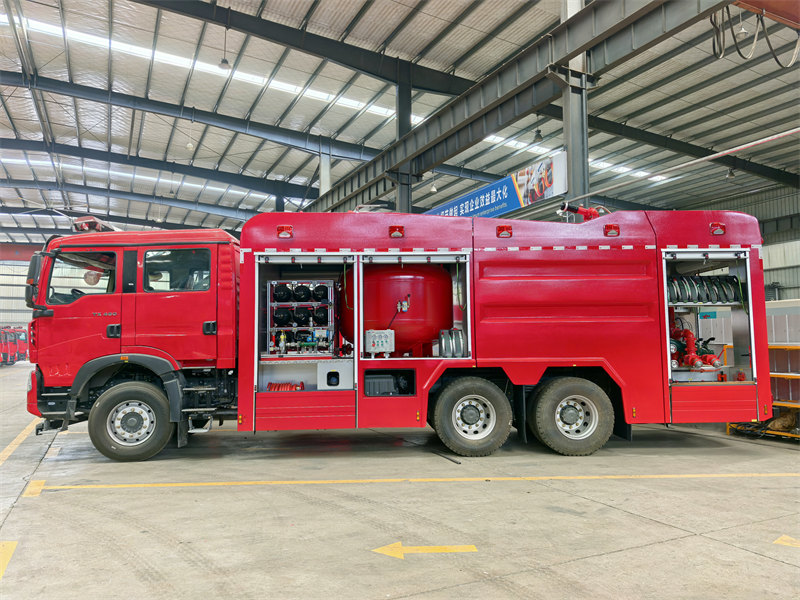

✦Ⅲ.Functional Structure For Howo TX fire fighting truck «««



Howo TX fire fighting truck

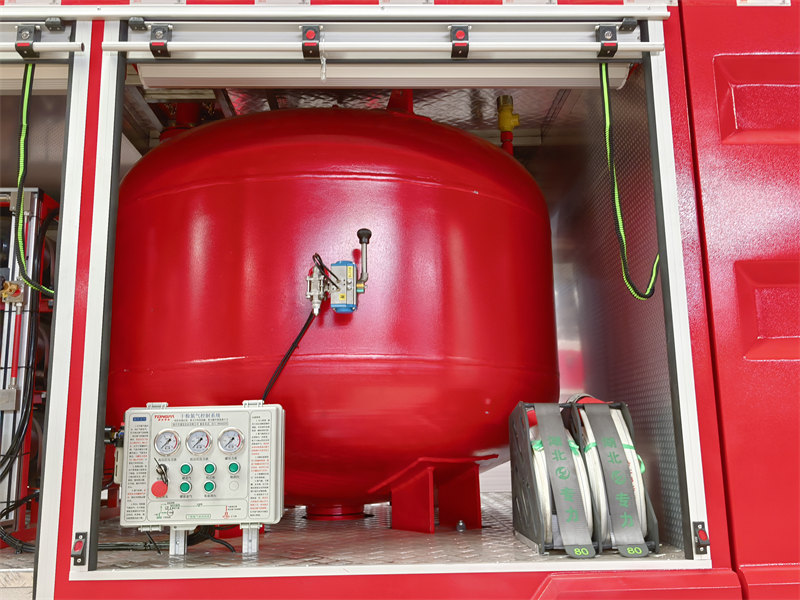

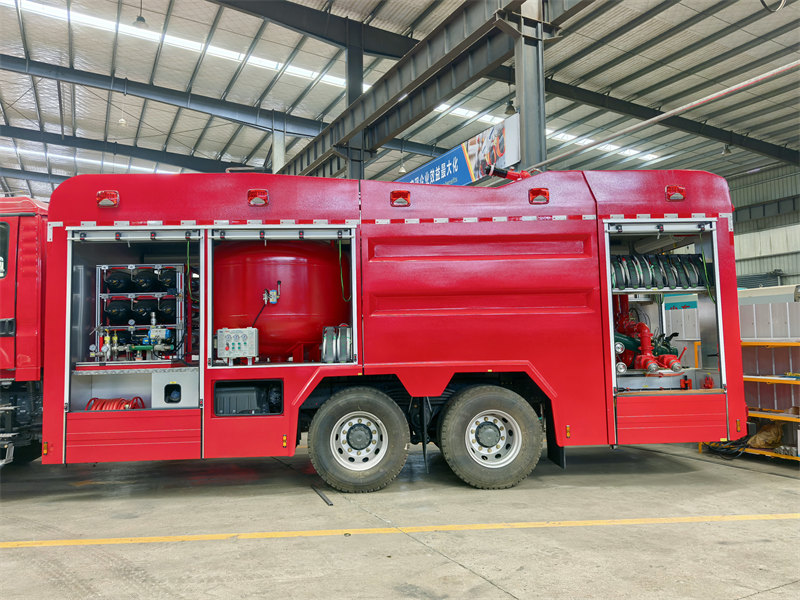

Dry Powder Fire Extinguishing System:

♦ Equipped with a 3000L carbon steel dry powder storage tank, providing ample reserves for sustained, long-term spraying.

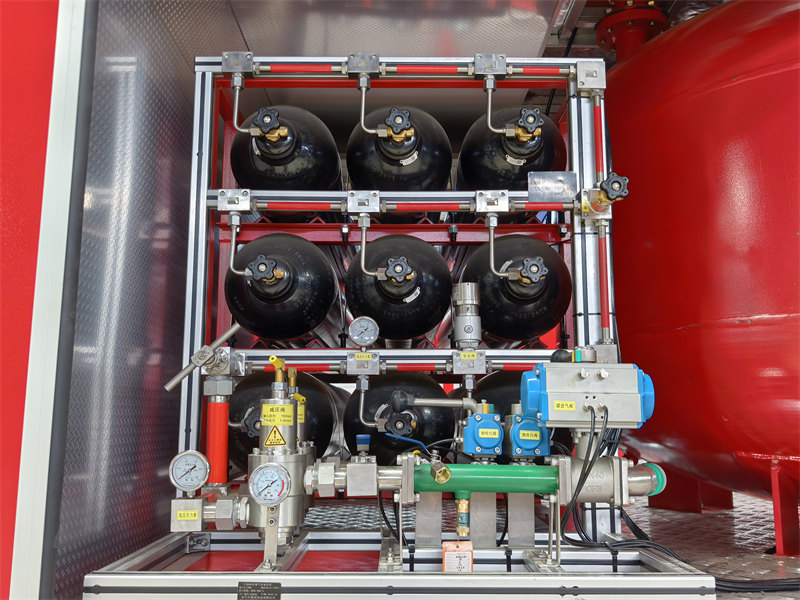

♦ Combined with nine 80L 37Mn nitrogen cylinders, designed to withstand pressures up to 15MPa.

♦ High-pressure nitrogen atomizes the dry powder at a rate of 60-100kg/s, providing wide coverage.

♦ It can rapidly smother and chemically suppress fires, suitable for Class A (solid), Class B (liquid, gas), and Class C (electrical) fires.



Howo fire fighting truck





Dry Powder System

Model

R25-303

Pressure Vessel

Ⅱ

Design Pressure

1.76MPa

Pressure Test Pressure

2.2MPa

Design Temperature

50°

Net Weight of Vessel

1345 kg

Capacity

3.0 CBM

Nitrogen Cylinder Group

NO of Nitrogen Cylinder

9

Capacity

80L

Working Pressure

≤15Mpa



  • Howo fire dry powder truck
  • Howo fire dry powder truck
  • Howo fire dry powder truck



Water & Foam Fire Extinguishing System:

♦ Equipped with a 3000L carbon steel water tank and a top-tier domestic brand fire pump

♦ Utilizes PTO drive mode, automatic priming, pressure range 1.6-2.5MPa

♦ Flow rate up to 45L/s, suction height 9m, priming time ≤10s

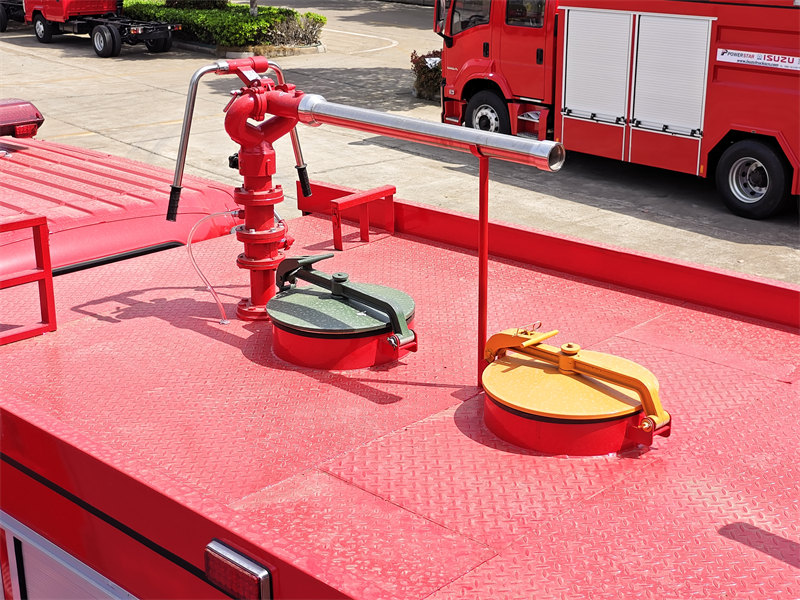

♦ Long-range fire monitor with a range of up to 65 meters, allowing firefighters to operate at a safe distance and avoid direct contact with the fire source.

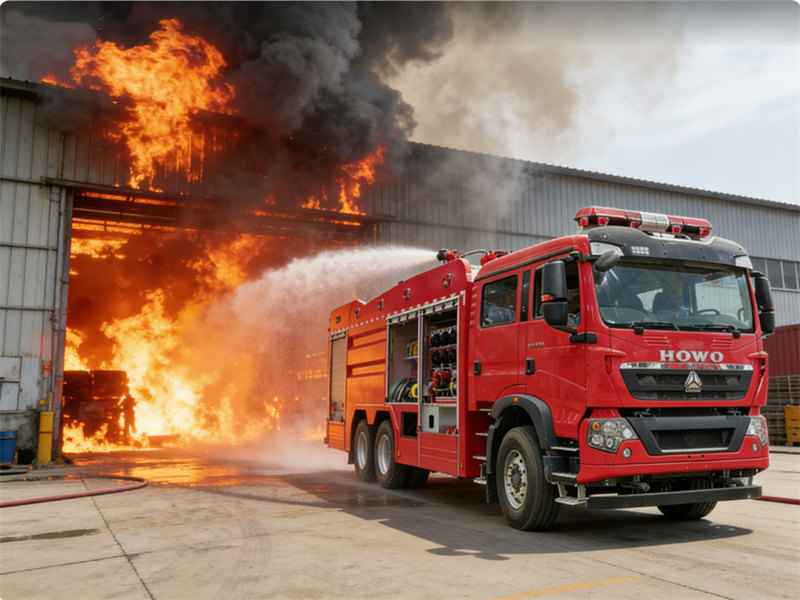

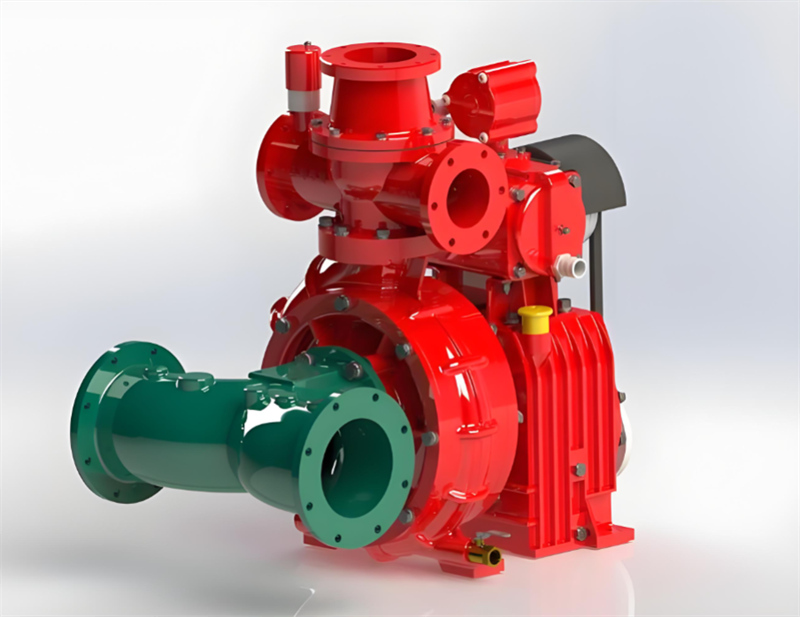

Howo fire pump water truck



Fire pump Model

Pressure

 Max working pressure

 Flux

Rated speed

 Speed Ratio

 Max pressure

Priming Time

Head

CB10/80-XZ

1.0MPa

1.380MPa

80L/s

 3300±3435r/min

  1:1.54

  ≥0.40MPa

≤10s

40m



Howo fire pump water truck



✦Ⅳ.Advantage For Howo TX Fire Fighting Truck «««

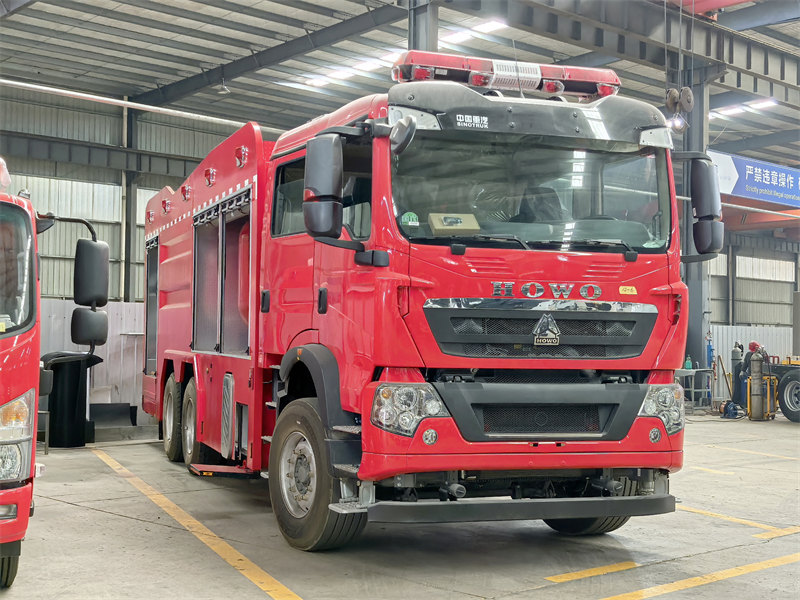

Howo fire truck

1. Powerful Engine and Superior Chassis：

♦ The 6x4 configuration provides exceptional traction and load-bearing capacity, making it ideal for operation in accident scenes such as factories and warehouses on rough, slippery, or unpaved roads.

♦ The Howo TX cabin chassis is reinforced to reliably support heavy-duty equipment (dry powder systems, water tanks, nitrogen cylinders), ensuring stability and safety during driving and operation.

♦ The Weichai WP10.340E32 engine is a proven and mature engine with high torque and excellent low-speed torque characteristics, making it ideal for fire trucks that require frequent starts, acceleration, and continuous operation.

♦ The HW 10-speed transmission features closely spaced gears, allowing the driver to precisely select the appropriate gear based on road conditions and load, ensuring smooth and efficient power delivery.



Howo fire truck

2. Comprehensive and Practical Configuration：

♦ The cab can accommodate 2+4 people and is equipped with air conditioning, providing a comfortable working environment for rescue personnel.

♦ The superstructure has a complete electrical system, and the cab roof is equipped with a long row of warning lights and an siren.

♦ Strobe lights, LED lights, and yellow warning lights are installed on both sides of the truck bed, the roof, and the steps, respectively.

♦ Comprehensive protection ensures warning and lighting needs during operations, improving safety at night and in complex environments.

♦ The vehicle is equipped with a full set of standard fire and rescue equipment, including shovels, crowbars, axes, and cutting equipment.







China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



Howo fire trucks



Howo fire trucks
